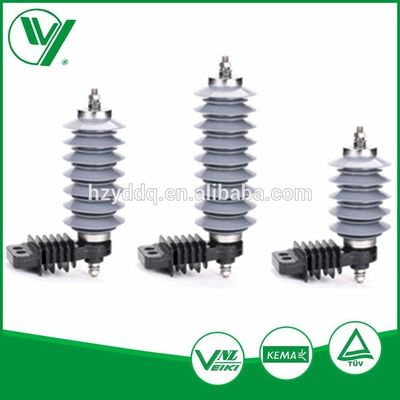

21kV,5kA polymer lightning arrester/surge arrester

Product Details

원래 장소: 저장, 중국(본토)

브랜드 이름: YONGDE

인증: ISO9001/KEMA

모델 번호: YH5W5-21

Payment & Shipping Terms

최소 주문 수량: 1PC

가격: negotiation

포장 세부 사항: 통

배달 시간: 컨테이너 당 21 일

지불 조건: 웨스턴 유니온, 전신환, L/C (신용장)

공급 능력: 달 당 30,000 PC

최상의 가격을 얻으세요
Highlight:
21kV,5kA polymer lightning arrester/surge arrester

Single Phase Silicon Rubber Lightning and Power Surge Arrester for Electrical Equipment



Specifications:


Composite Surge Arresters can be applied to a variety of systems including substation equipment, AC-DC converters, railway power system and power distribution units ranging from 0.25kV to 765kV systems. These surge arresters demonstrate excellent protection properties. Metal oxide type surge arresters offer such special features inherent in the gap-less structure, such as a quick response to surge voltage, high energy dissipation capability, safe operation, compactness / lightweight and freedom from pollution.



Type YH5W5-21/56
Rated voltage---------kV 21
MOCV ----------------kV 16
Nominal Current-------kV 5
Residual voltage of steep impulse----at 5kA(kV) 60.5
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV) 56
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV) 46
1mA D.C reference voltage (kV) 29.7
Line discharge level 1
2mS long duration impulse current A 200
4/10µS High current impulse kA 65
Lightning impulse withstand kV 125
Power frequency voltage withstand(dry/wet)kV 43
0.1S TOV--------------kV 25.2
1S TOV----------------kV 24.15
10S TOV---------------kV 23.1
1200S TOV-------------kV 21
Creepage distance ----mm 670
Material employed in series non-linear resistor Zinc Oxide



Competitive Advantage:



1. Compact and Lightweight

2. Extremely Safe Pressure Relief Performance

3. Superior Performance against Environmental Contamination

4. Directly Molded Structure

5. Compliance with International Standards(IEC60099-4)

6. Simple Support Structure

7. Manufactured at Advanced ISO-9001 certified facilities
