| MOQ: | 3 |
| 가격: | 1 |
| Attribute | Value |
|---|---|
| Model NO. | Y15W5-288 |
| Installation | Parallel Arrester |
| Application | Substation |
| Size | Large |
| Operation Voltage | High Voltage |
| Shape | Cuboid |
| Material | ZnO |
| Brand | Yongde |
| Breaking Capacity | High Voltage Circuit Breakers |
| Arc-Extinguishing Medium | Air |
| Housing | Porcelain |

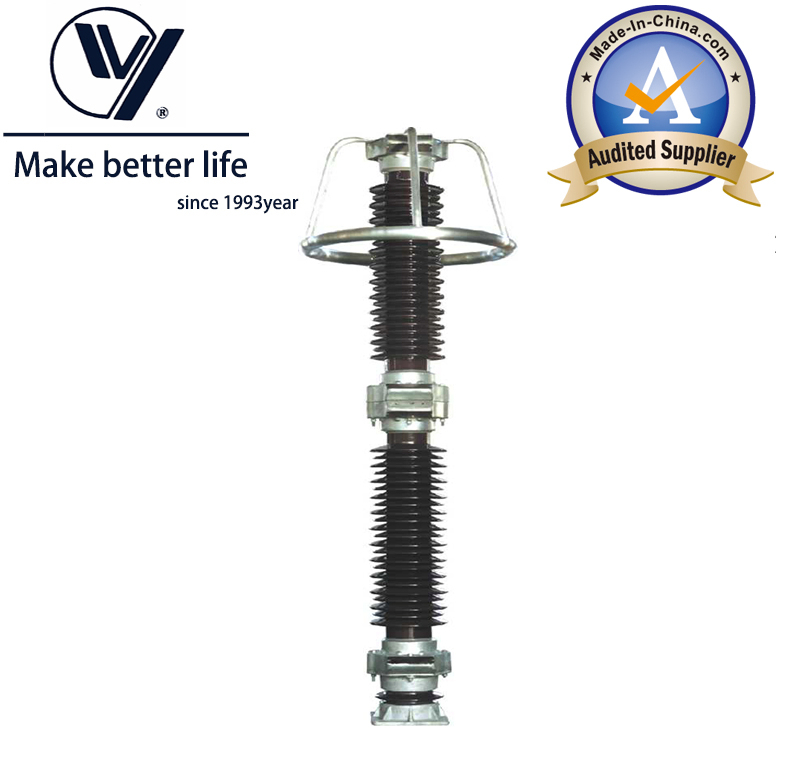

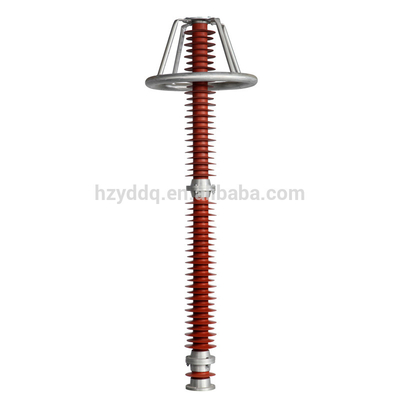

| Accessory | Grading Ring |
| Transport Package | by Wood Carton |
| Specification | Iec60099-4 |
| Trademark | YongDe |
| Origin | China |
| HS Code | 85354000 |
| Production Capacity | 5000PCS/Year |
| Type | Nominal System Voltage | Rated Voltage | Continuous Operating Voltage | MRV under 1/5 μs Steep Discharge Current | MRV under 8/20 μs Lightning Discharge Current | MRV under 30/60 μs Operating Discharge Current | Minimum Reference Voltage under 1 mA DC | 4/10 μs High Current Impulse Twice (KA) | 2mS SW through-flow capacity A/18 | Line Discharge Class | Weight kg | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y10W-192/520 | 245 | 192 | 150 | 560 | 500 | 426 | 280 | 100 | 600 800 | 327 | ||||
| Y10W-200/520 | 220 | 200 | 156 | 582 | 520 | 442 | 290 | 100 | 600 800 | 327 | ||||
| Y10W-204/532 | 220 | 204 | 159 | 594 | 532 | 452 | 296 | 100 | 600 800 | 327 | ||||
| Y10W-216/562 | 220 | 216 | 168.5 | 630 | 562 | 478 | 314 | 100 | 600 800 | 327 | ||||
| Y20W-240/640 | 300 | 240 | 192 | 718 | 640 | 493 | 100 | 850 | 3 | 350 | ||||
| Y10W-288/715 | 362 | 288 | 230 | 862 | 715 | 575 | 100 | 850 | 3 | 375 |
