| MOQ: | 30 |
| 가격: | 1 |
| Attribute | Value |
|---|---|

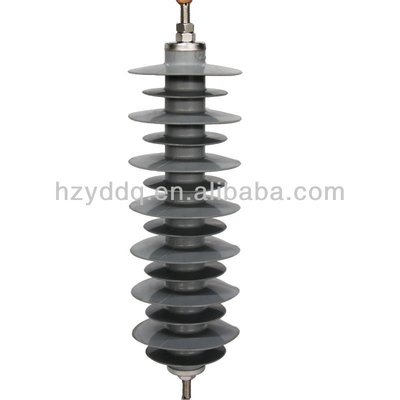

| Model NO. | YH10W-24 |
| Discharge Current | 10ka |
| Voltage | 24kv |
| Transport Package | Carton |
| Specification | IEC60099-4 |
| Trademark | YONGDE |
| Origin | China |
| HS Code | 85354000 |
| Production Capacity | 5000/Month |

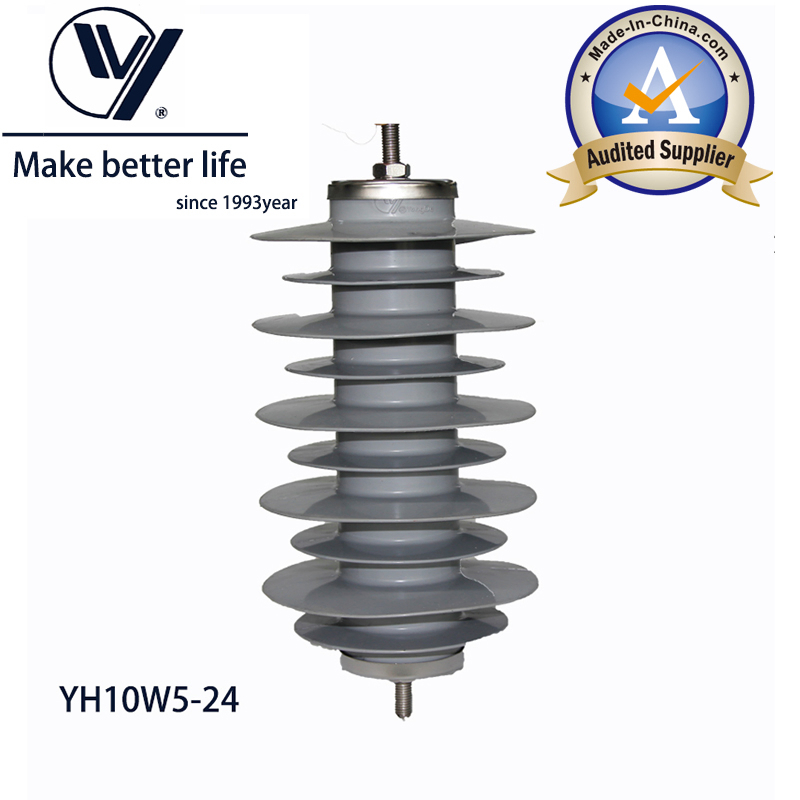

| Type | YH10W5-24/66 |
|---|---|
| Rated voltage (kV) | 24 |
| MOCV (kV) | 19.5 |
| Nominal Current (kV) | 10 |
| Residual voltage of steep impulse at 5kA (kV) | 71.5 |
| 8/20µS Residual voltage of lightning impulse current (Peak value) at 5kA (kV) | 66 |
| Residual voltage of switching impulse current (peak value) at 1kA (kV) | 50 |
| 1mA D.C reference voltage (kV) | 34 |
| Line discharge level | 1 |
| 2mS long duration impulse current (A) | 400 |
| 4/10µS High current impulse (kA) | 100 |
| Lightning impulse withstand (kV) | 150 |
| Power frequency voltage withstand (dry/wet) (kV) | 50 |
| 0.1S TOV (kV) | 28.8 |
| 1S TOV (kV) | 27.6 |
| 10S TOV (kV) | 26.4 |
| 1200S TOV (kV) | 24 |
| Creepage distance (mm) | 824 |
| Material employed in series non-linear resistor | Zinc Oxide |
